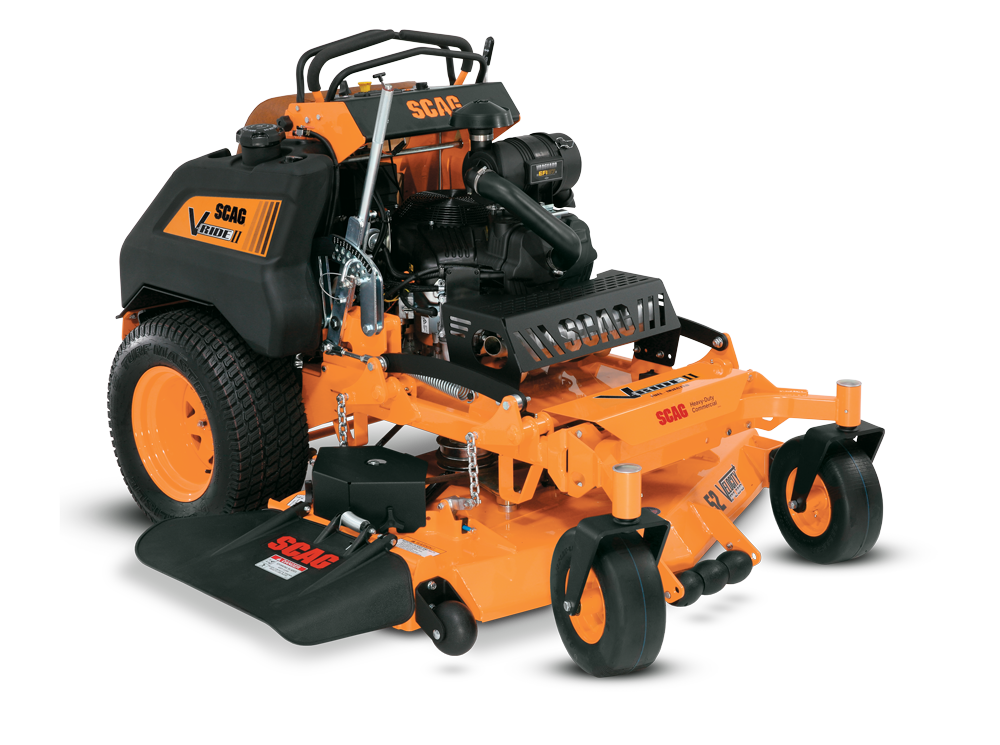

Scag V-Ride II

Specs

Model	Deck Width	Engine	Horsepower	MSRP
SVRII-32A-16FX	32″	Kawasaki® FX Series	16	$9,999
SVRII-32A-23BV	32″	Vanguard™	23	$10,099
SVRII-36A-19FX	36″	Kawasaki® FX Series	19	$10,399
SVRII-36A-23BV	36″	Vanguard™	23	$10,999
SVRII-48V-22FX	48″	Kawasaki® FX Series	22	$11,599
SVRII-48V-23CV	48″	Kohler® Command PRO®	23	$11,199
SVRII-48V-25CV-EFI	48″	Kohler® Command PRO® EFI – electronic fuel injection	25	$11,299
SVRII-52V-23FX	52″	Kawasaki® FX Series	23	$11,999
SVRII-52V-25CV-EFI	52″	Kohler® Command PRO® EFI – electronic fuel injection	25	$11,499
SVRII-52V-26FT-EFI	52″	Kawasaki® FT Series EFI – electronic fuel injection	26	$11,999
SVRII-52V-37BV-EFI	52″	Vanguard™ BIG BLOCK™ EFI – electronic fuel injection	37	$13,399
SVRII-61V-26CV-EFI	61″	Kohler® Command PRO® EFI – electronic fuel injection	26	$12,749
SVRII-61V-38CV-EFI	61″	Kohler® Command PRO® EFI – electronic fuel injection	38	$13,499
SVRII-61V-38FX-EFI	61″	Kawasaki® FX Series EFI – electronic fuel injection	38.5	$13,899
SVRII-61V-40BV-EFI	61″	Vanguard™ BIG BLOCK™ EFI – electronic fuel injection	40	$14,099

Product Dimensions	32″ V-Ride II	36″ V-Ride II	48″ V-Ride II	52″ V-Ride II	61″ V-Ride II
Length	65.25″	65.25″	67.5″	69.5″	72.75″
Tracking Width	32″	36″	48″	48″	48″
Width (chute down)	43″	47.75″	61.25″	65.25″	73.5″
Width (chute in transport position)	33.75″	37.25″	49.75″	53.75″	62.75″
Height	47″	47″	47.25″	47.25″	47.25″
Weight	818 lb	832 lb	1,015 lb	1,000-1,022 lb	1,127-1,173 lb

General
Total Fuel Capacity	5 gallons (32″) 6.75 gallons (36″) 8 gallons (48″, 52″, and 61″)
Drive Tires	20″ x 6.5″-10″ (32″) 20″ x 8″-10″ (36″) 24″ x 9.5″-12″ (48″ and 52″) 24″ x 12″-12″ (61″)
Caster Tires	11″ x 4″-5″ (32″ and 36″) 13″ x 5″-6″ (48″ and 52″) 13″ x 6.5″-6″ (61″)
Seat	Extra-large comfort cushion
Drive System
Drive System Type	Dual Pump and Motor
Pumps	Hydro-Gear 10 cc (32″ and 36″) Hydro-Gear 12 cc (48″, 52″, and 61″)
Motors	Parker 12 ci (32″ and 36″) Parker 14 ci (48″, 52″ and 61″)
Forward Ground Speed	8.5 mph (32″ and 36″) 10.5 mph (48″, 52″ and 61″)
Reverse Ground Speed	5 mph
Parking Brake	Hand lever
Deck
Cutting Widths	32″, 36″, 48″, 52″ and 61″
Type	Advantage (32″ and 36″) Velocity Plus™ (48″, 52″, and 61″)
Cutting Height	1.5″ to 4.5″ in .25″ increments
Deck Lift	Hand lever
Construction	Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. 32″ model features dual-plate.
Spindles	Cast-iron housing with tapered roller bearings.
Blade Engagement	Ogura GT3.5 (250 ft lb) – (61″) Adjustable air-gap for extended life.
